Our living wall & greening systems
We offer distinct systems to fit the needs of every project. Learn how they work to see which options might suit your scheme.
Jump to:
Viritopia Living Wall System®
- 80 plants per m²
- Natural soil substrate
- Pre-grown for density
- Fire tested
- 72-80kg per m² saturated
- Irrigation included
The result of 18+ years of research and development, our modular living wall system is proven for large, small, and geometrically complex projects.
By planting in soil, the system supports a wide variety of plant species — allowing designers to maximise environmental benefits, create bespoke patterns, and use native plants that thrive in the local climate. Modules can be pre-grown offsite, in order to arrive dense and established on installation day.
Offered in two materials
Polypropylene (plastic)
Manufactured in the UK made from fire-retardant plastic, our fire-rated modules are the standard solution.
Stainless steel
Our proven living wall system, offered in a premium material for enhanced longevity and fire performance.
A look inside our living wall modules
Natural substrate
Our living wall systems grow plants in soil-based substrate. Soil helps retain water and supports a wide variety of plants (enhancing biodiversity).
Modular design
The modules come together to create a seamless living wall of any shape or size. Our green wall system also works with curved walls and steep angles.
Interactive Viritopia Living Wall Module diagram (plastic)
Built-in irrigation
We design and calibrate the irrigation to each living wall to optimise water use. Our irrigation systems are remotely monitored 24/7 to ensure performance.
Flexible divider panel
We designed these panels to slightly shift as plant roots expand. This supports larger species and helps plants grow stronger.
Fixing to façades
Our modular living walls work with a range of build-ups to suit most structures and surfaces. We’ll recommend the right build-up for your project to avoid doubling up on materials.
Aluminium top hat
Designed for brick, concrete, and other solid masonry surfaces.
Sandwich panel
Affixed directly onto sandwich panels from a range of compatible manufacturers.
Helping hand system
Often used on rainscreen cladding panels, or when an insulation layer is required.
Steel frame
A freestanding frame for schemes where the load bearing on a façade is limited.
Backing board
Used for interior walls with calcium silicate boards, as well as other façade types.
Climbing green wall systems
- Lightweight
- Vining plants
- Minimal maintenance
- Reduced irrigation needs
- Grows over time
Climbing systems grow plants from the ground or in planters, using a wire structure to guide vines upward. They soften the building’s appearance, provide shade, and dampen sound. Climbing systems offer an alternative option when a modular living wall isn’t feasible. You can also use both systems in one project.
At Viritopia, we use a variety of climbing systems for green walls, including our wire mesh, traditional wires-and-climbers, and façade planters. We’ll help you choose what’s best for your project.

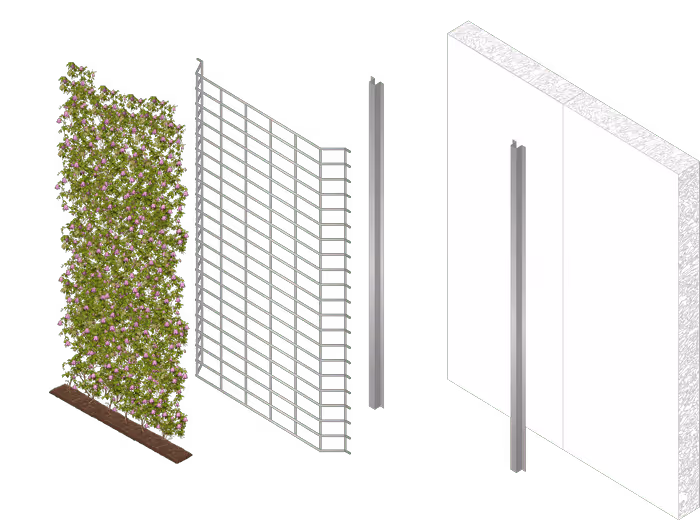

Viritopia Living Mesh System®
Our living mesh system is a metal grid that allows plants to grow both vertically and horizontally, providing fuller green coverage. It’s lighter, more cost effective, and faster to install than traditional wires. It comes in 200+ colours to blend in with your façade.
GrufeKit®
- Pre-grown, no planting
- Easy to install
- 20kg/module saturated
- Fast delivery
- Low maintenance
Our living roof system makes it quick and easy to install a green roof. Lay down the protection layer, place the GrufeTiles, cut any modules to size, and clip them together. It’s simple enough to DIY.
Common questions about our systems
Find answers to common questions about our living wall systems.
Still have questions? Reach out to our team.
Should I specify a modular or climbing green wall system?
It depends on the project’s objectives, your desired aesthetic, and the building’s structure and weight capacity. You can also use a combined approach for your scheme. We’ll help you compare living wall options and choose the right solution(s) for your goals.
What are the fire ratings of Viritopia’s living wall systems?
The polypropylene (plastic) Viritopia Living Wall System has been assessed in accordance with EN 13501-1 and is expected to achieve a reaction to fire classification of B-s2, d0. The stainless steel variant has completed fire testing with Trimo (EI 120) and has achieved a rating of A2 (non-combustible).
Due to the nature of living wall systems, this classification is based on a combination of testing and engineering assessment and should be verified against project-specific fire test documentation, available on request.
Our climbing living wall systems are not considered a part of the façade and are instead treated as attachments to the building, which do not require a fire rating.
For more information about fire safety, reach out to enquiries@viritopia.com with the subject line: "Living Wall System Fire Report request.”
Can Viritopia’s green wall systems work with curved lines and angles?
Yes, we can facet our modular living wall system around curves. We also offer half-modules and corner modules to better fit your wall. To see what our system can achieve, check out our work on the Museum of The Future.
Is the system available for independent procurement?
Our living roof system, GrufeKit, is available to consumers. The Viritopia Living Wall System and Viritopia Living Mesh System are exclusively supplied to and installed by our authorised partners. Reach out to explore partnership opportunities with Viritopia and learn more about our systems.
Which green wall system fits within our budget?
We offer a variety of green infrastructure systems and materials to fit a range of budgets. Contact us to learn what might be feasible for your project.
What are the hidden costs?
Every living wall requires ongoing maintenance to ensure product longevity, fire safety, and insurance compliance. Our maintenance plans cover the irrigation system, fertilizer and other supplies, modules, mesh, and plant replacement as specified in our contract. We offer detailed estimates with indicative maintenance fees so there are no hidden costs.
Preparing to specify?
We’re here to help you identify the right systems for your project. Reach out to speak with a team member or view our downloads for more information.
